Mount high and wide Install the rod 4–8 inches above the window frame (or just below the ceiling) to create the illusion of taller ceilings. Extend 6–12 inches beyond each side of the window so curtains can fully stack and allow maximum light. Choose the right width Your rod should extend at least 8–12 inches beyond the window width. For a fuller look, curtains should measure 2–2.5x the window width. Mind the ceiling height In rooms with lower ceilings, mounting closer to the ceiling visually elongates the space.

Always anchor properly Use wall anchors if you’re not mounting into studs. For heavier fabrics (velvet, lined drapery), install wall posts directly into studs whenever possible. Pre-drill holes Brass screws can sheer when under high torque. This can be prevented by pre-drilling your blockingwith the appropriate size drill bit. Using a steel screw of the same drive size and thread count can also help prepare the screw hole without making the hole too large for secure mounting. Add a center support (when needed) For rods longer than 35–48 inches, a center bracket prevents sagging and protects both the rod and your walls.

The Drapery Rod | Curtain Rod Customizer

The Drapery Rod | Curtain Rod Customizer

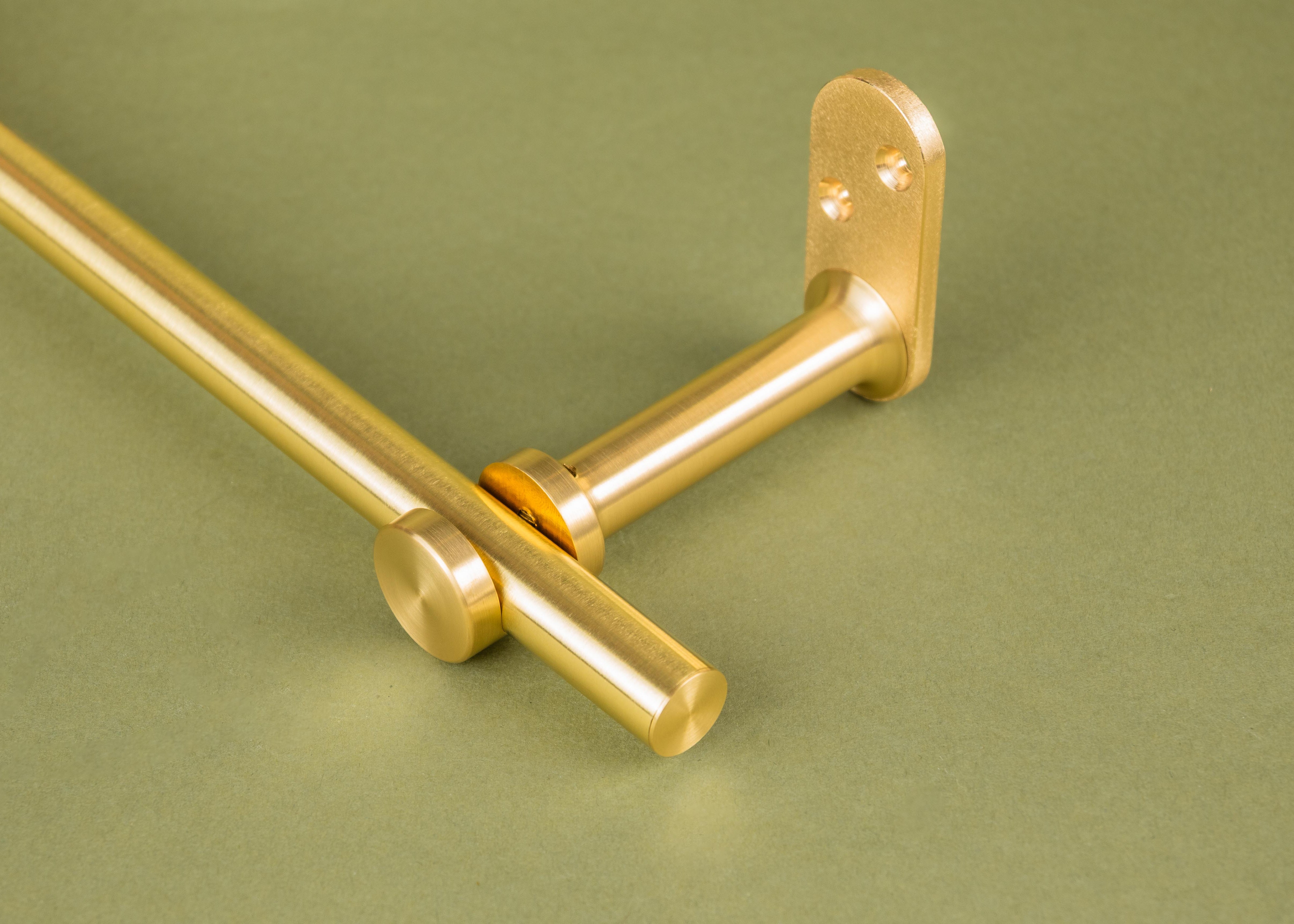

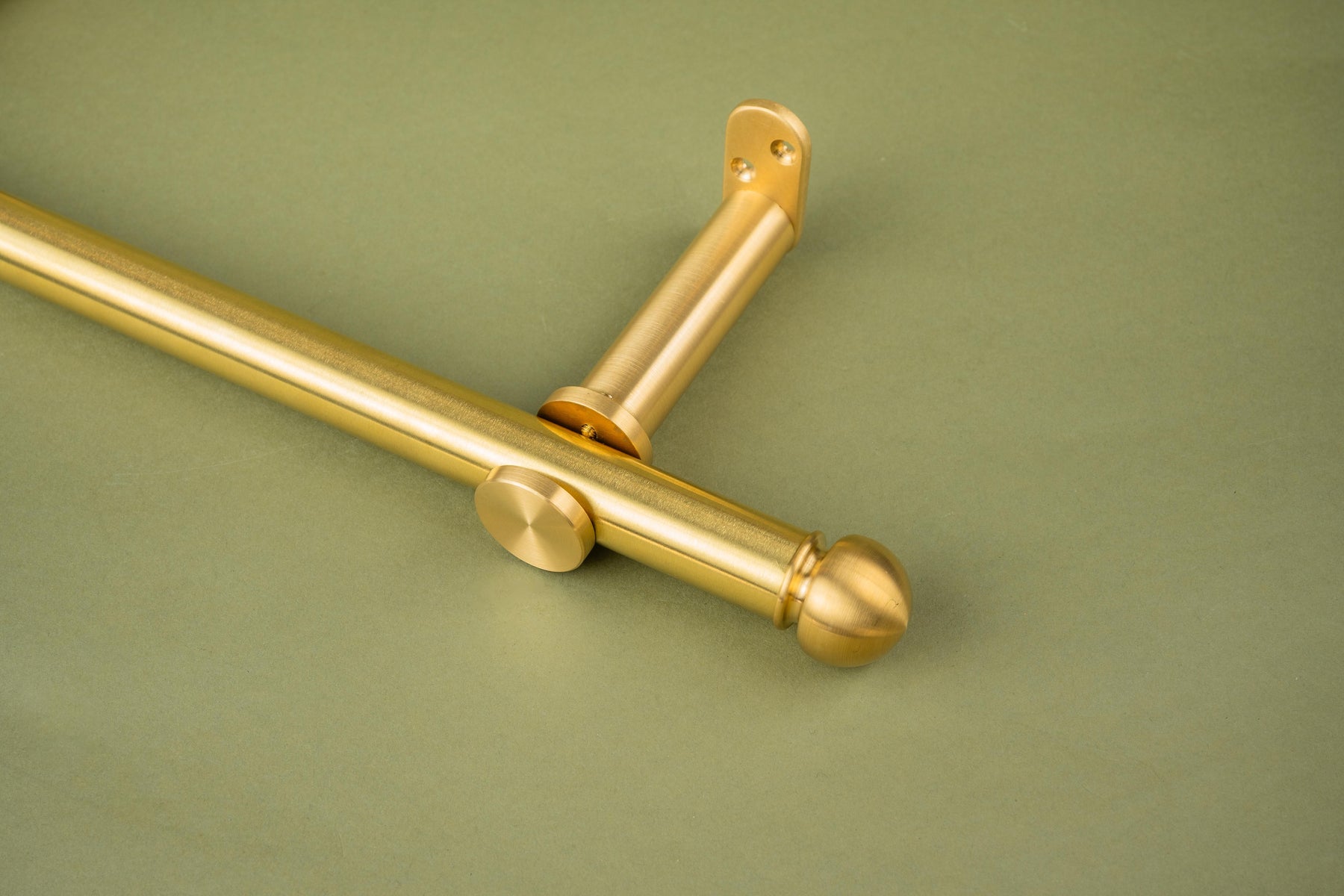

Name: The Drapery Rod | Curtain Rod Customizer
Brand: Brass Hardware
Availability: InStock

Customize your curtain rod for an instant quote, or add right to cart.

The windows to your world set the tone for how you view it. Embellish yours with The Drapery Rod. A touch of brass can add a dash of class and a spark of warmth, even on the dreariest of days.

Floating Shelf Details

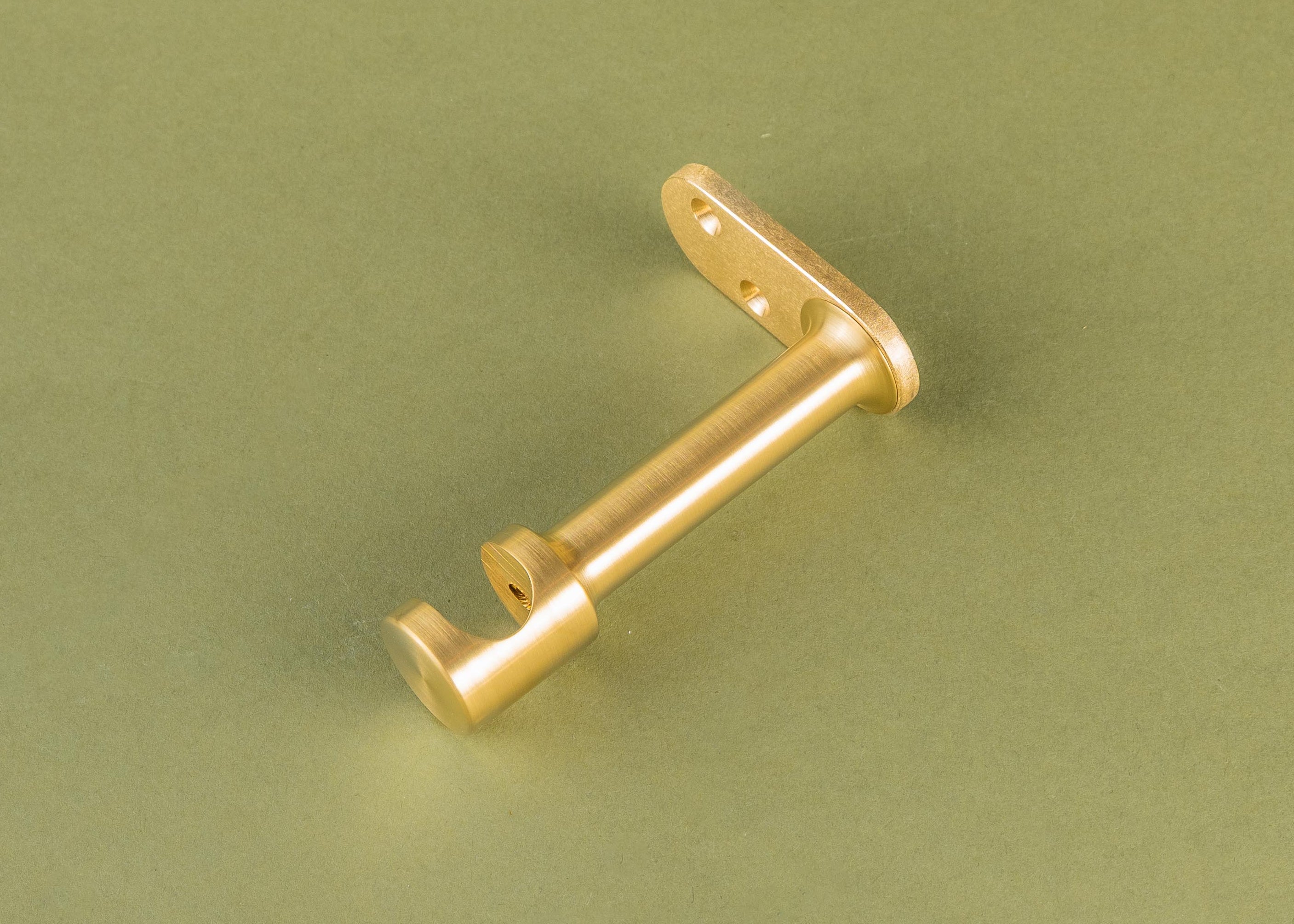

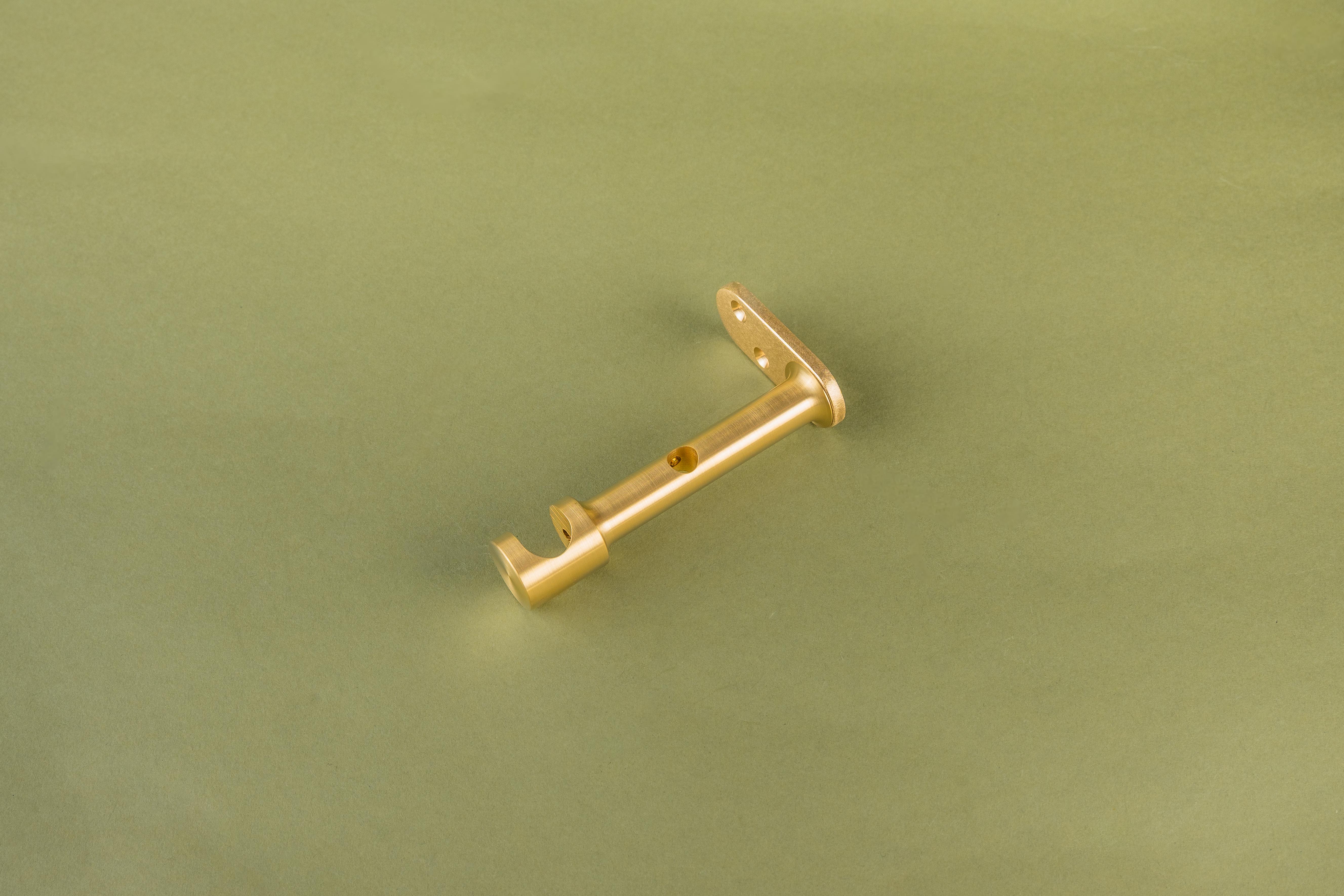

Wall Projection to front of posts:

1” Single Post: 4 ⅜”

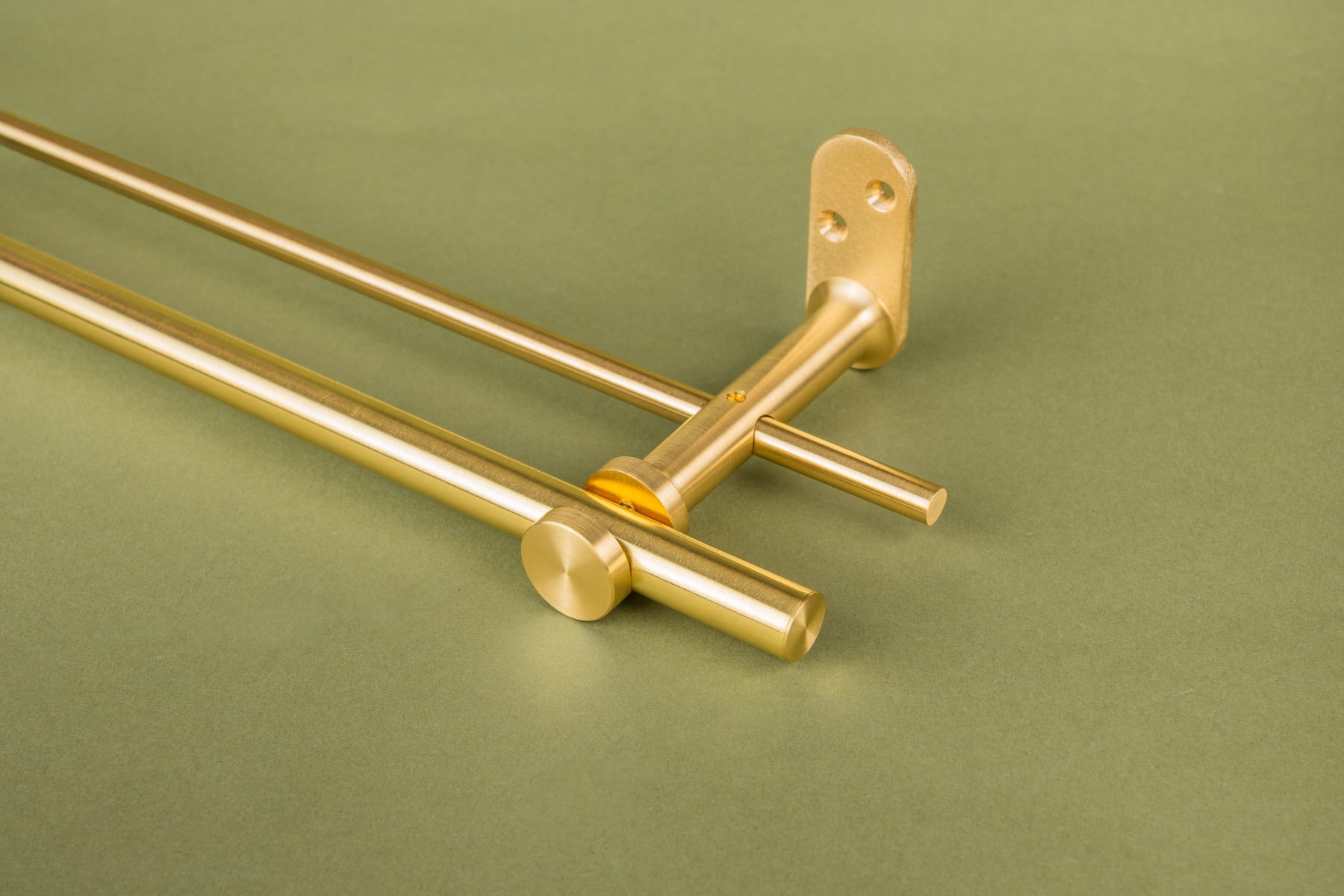

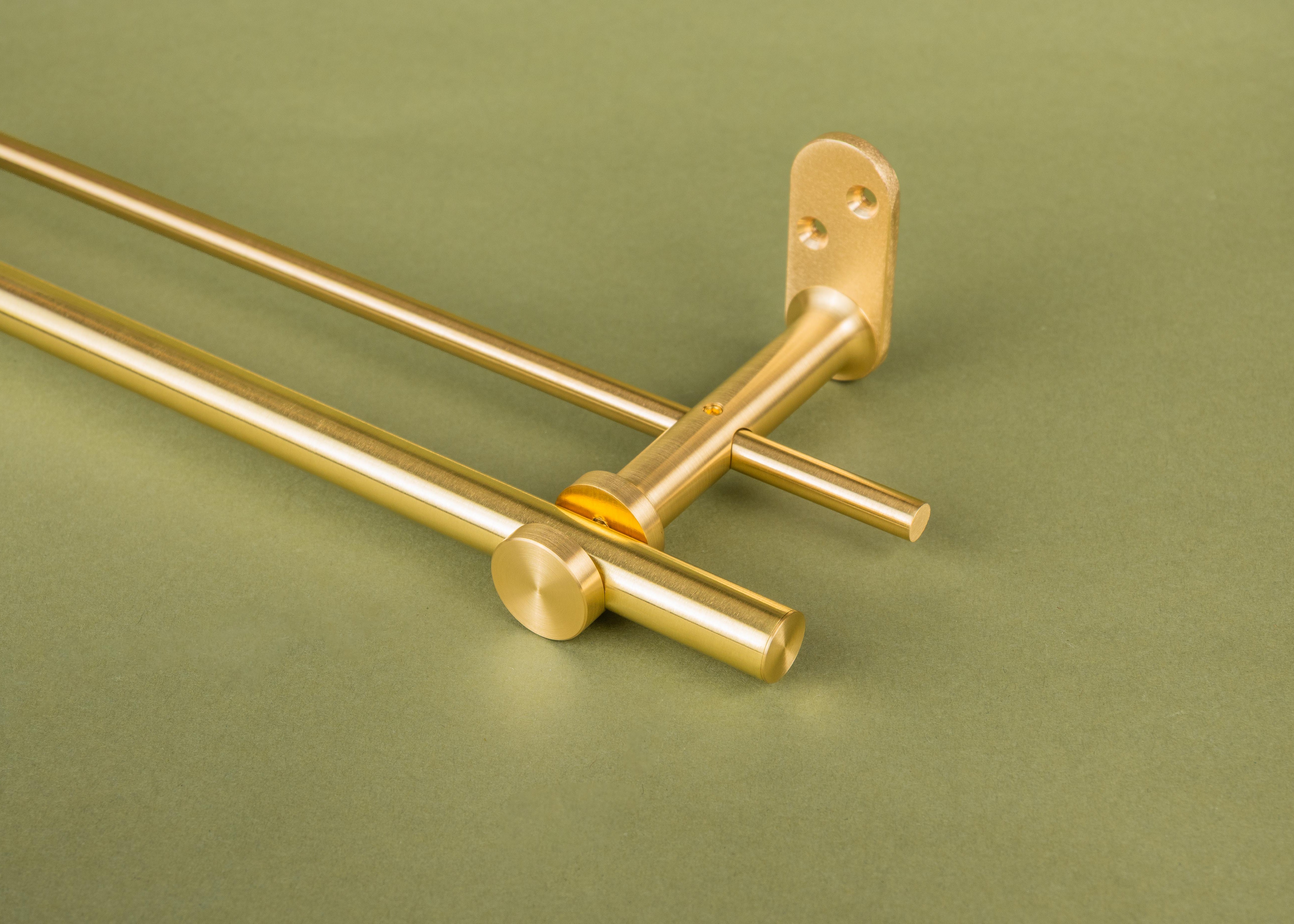

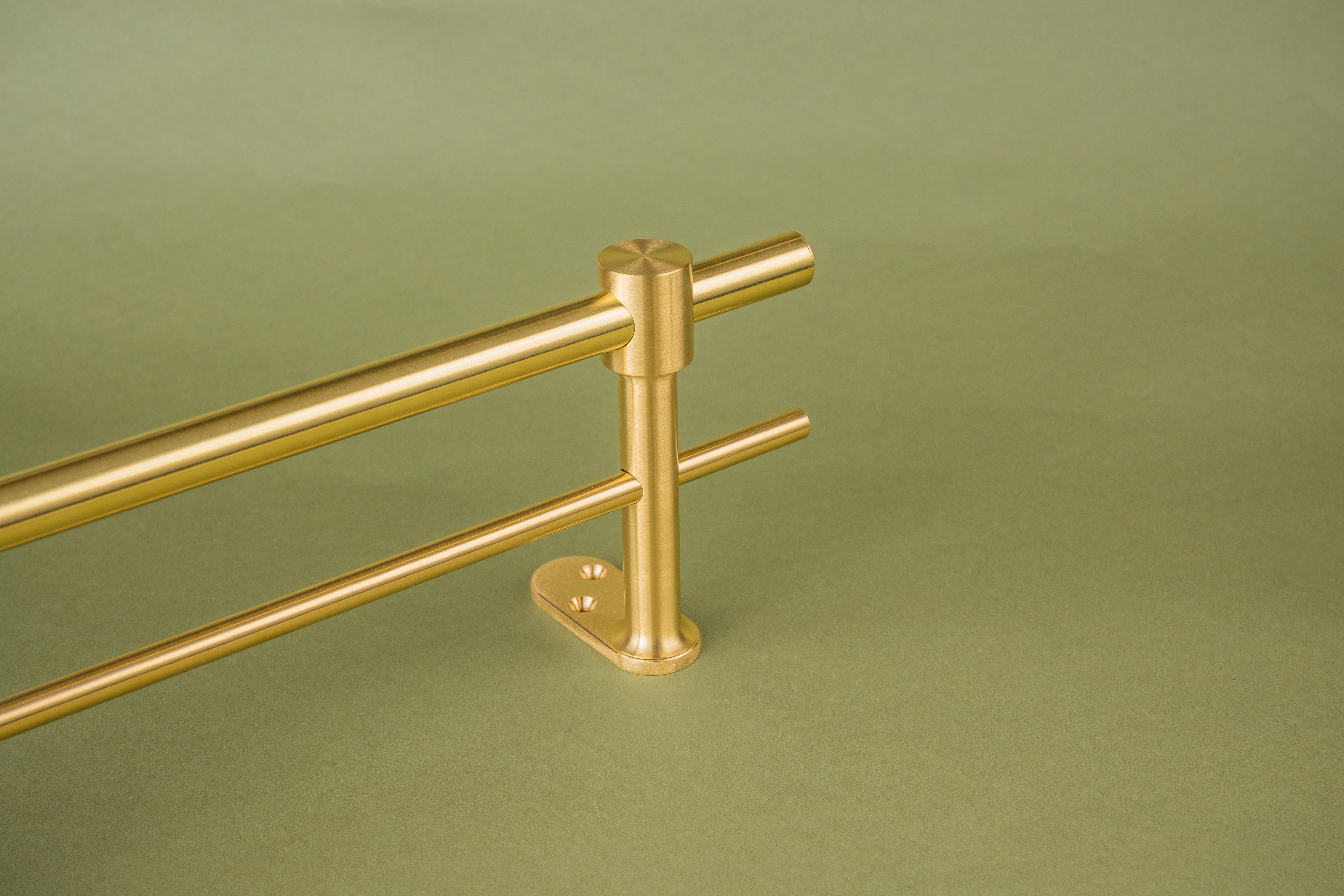

1” Double Post: 6 ⅜”
⅝” Single Post: 4”
⅝” Double Post: 4 ¾”

Post spacing: Spacing between posts should not exceed 48”. We recommend adding a post every 36”.

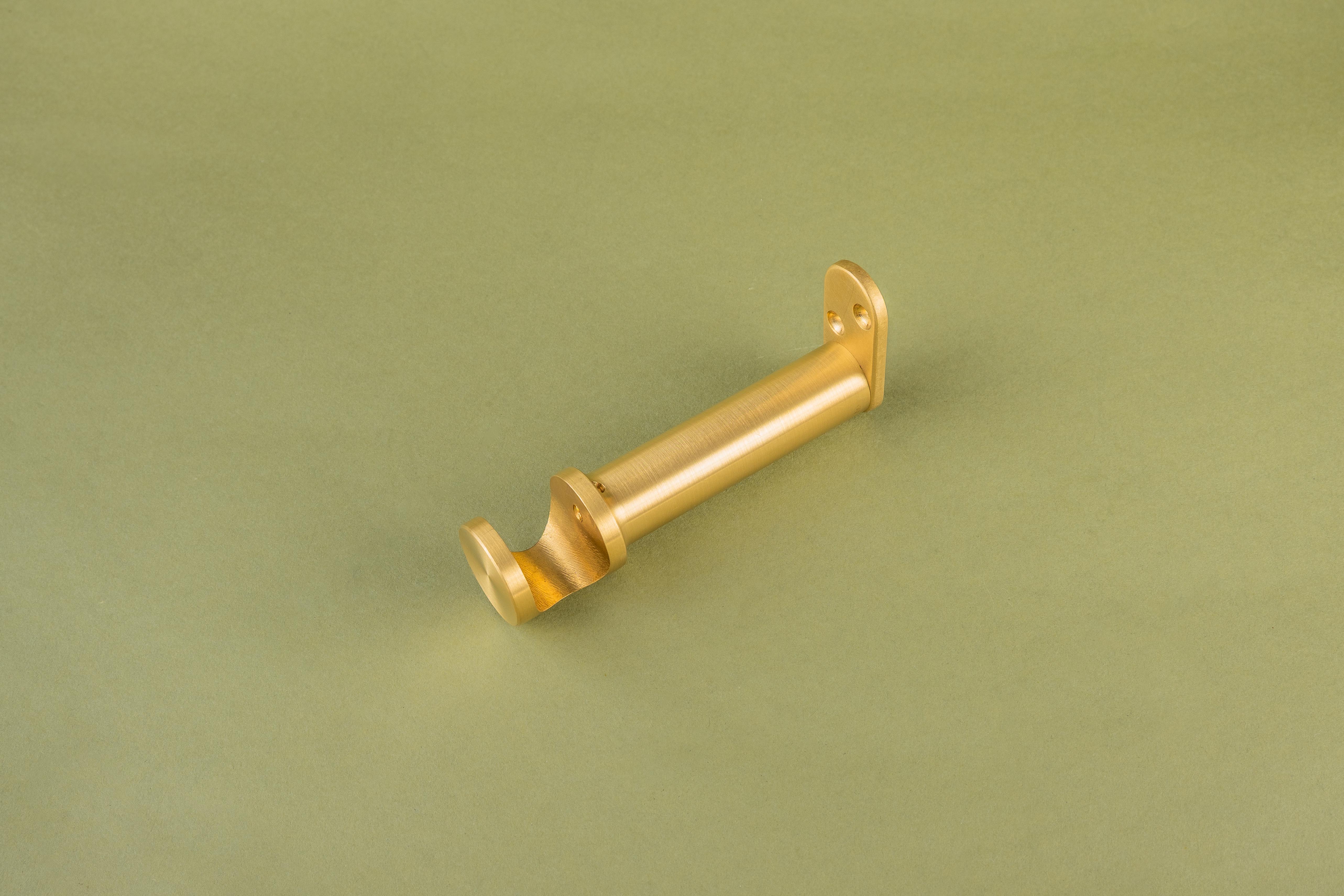

Wall post material: Precision-machined brass

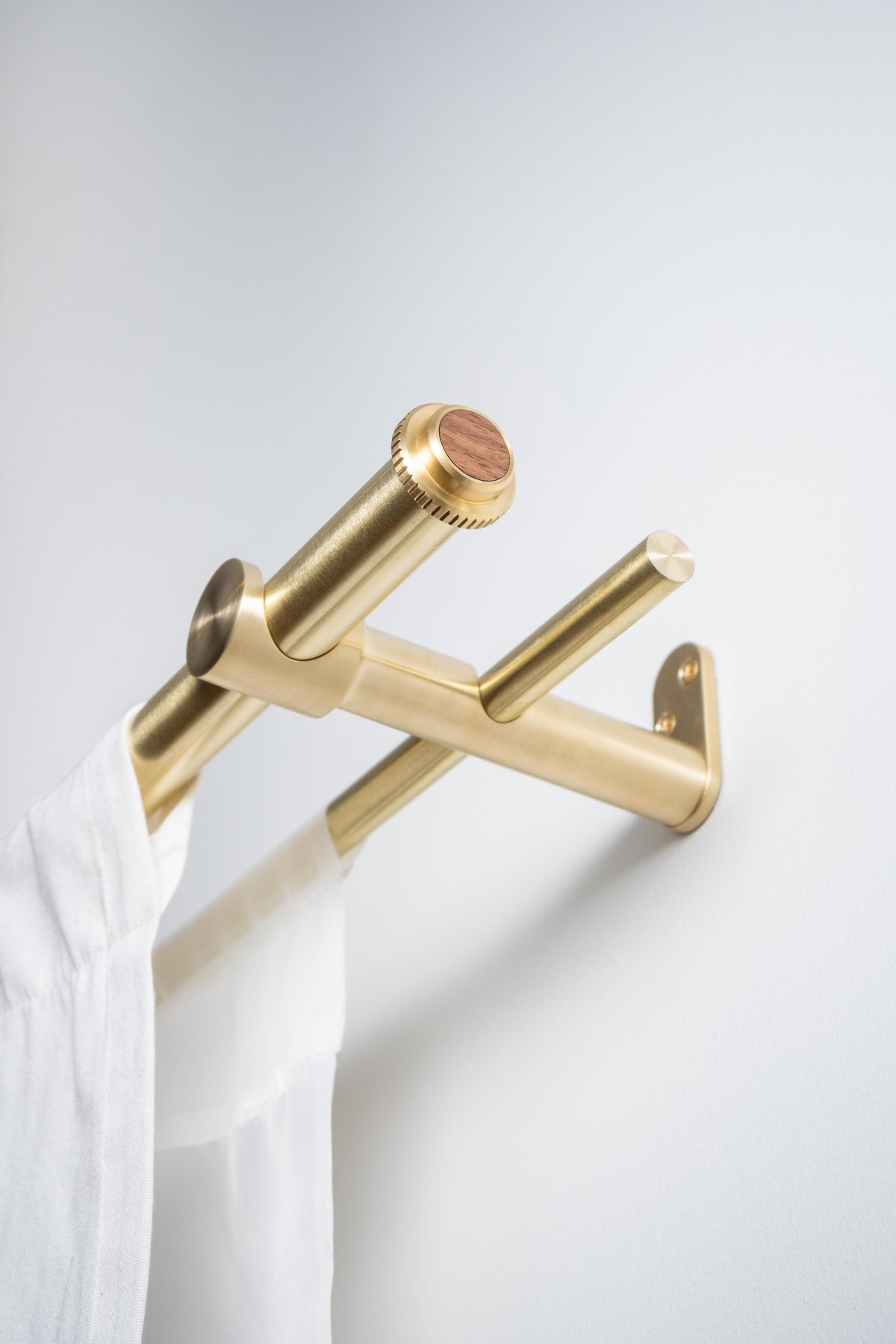

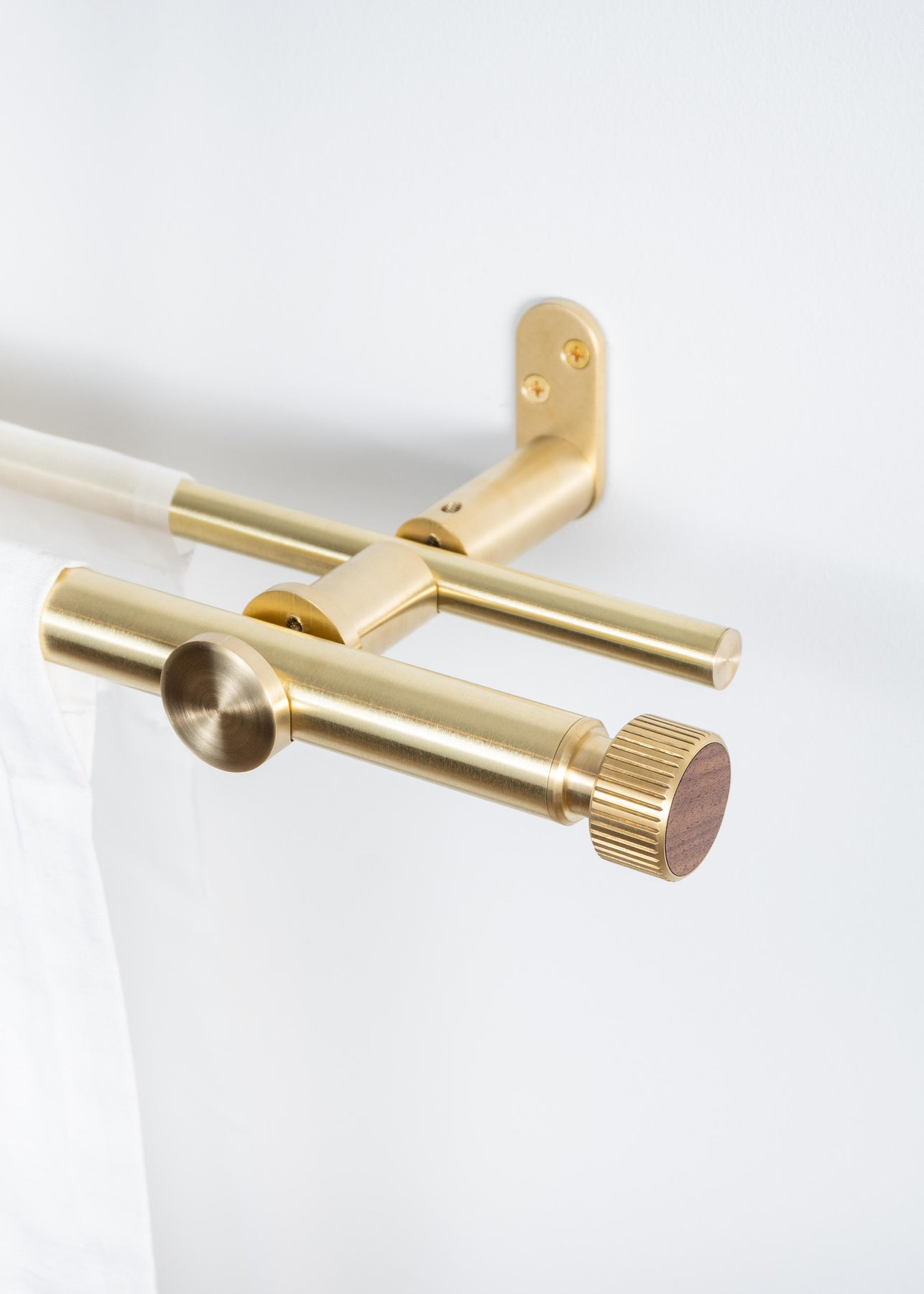

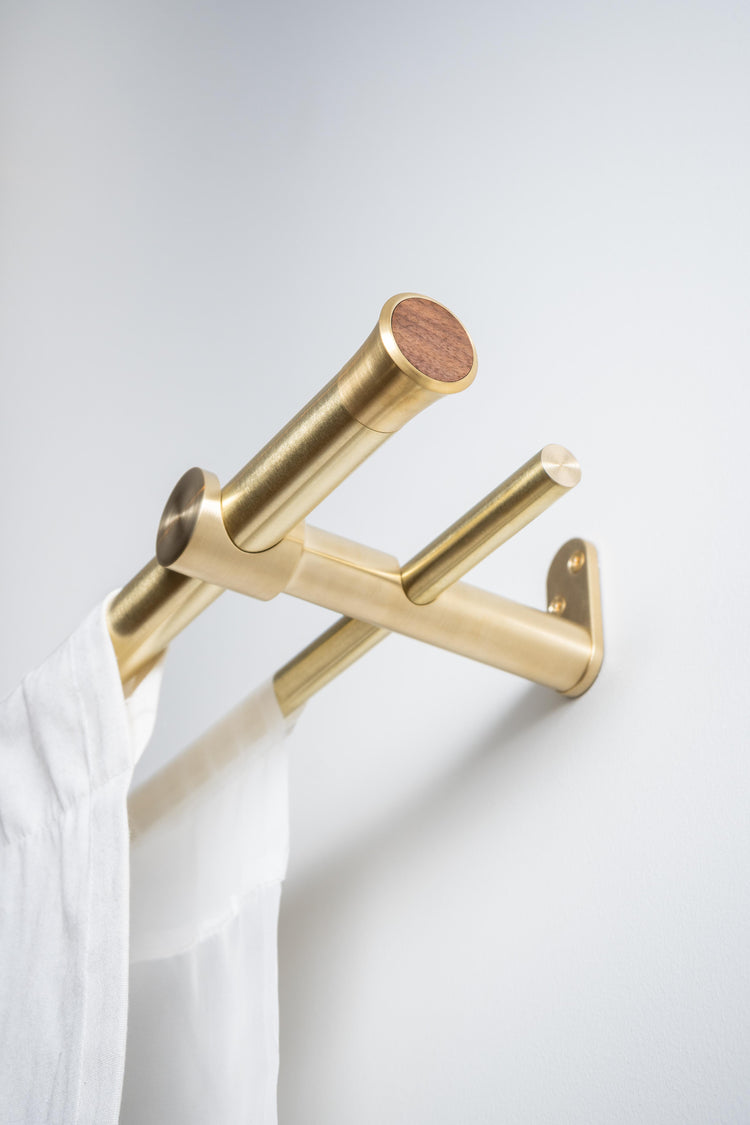

Finial Inlay material: Walnut

Custom Fabrication

Use the customizer tool to create your curtain rod by entering all of your measurements and quantities. Please contact us below if you have questions. If you would like to send us attachments, you can also email us directly at sales@brasshardware.com.

Fulfillment & Delivery

The current fabrication lead time for orders including lengths of tube or rail is 6-8 weeks after payment.

Product Info

Mount high and wide
Install the rod 4–8 inches above the window frame (or just below the ceiling) to create the illusion of taller ceilings. Extend 6–12 inches beyond each side of the window so curtains can fully stack and allow maximum light.
Choose the right width
Your rod should extend at least 8–12 inches beyond the window width. For a fuller look, curtains should measure 2–2.5x the window width.
Mind the ceiling height
In rooms with lower ceilings, mounting closer to the ceiling visually elongates the space.

Always anchor properly
Use wall anchors if you’re not mounting into studs. For heavier fabrics (velvet, lined drapery), install wall posts directly into studs whenever possible.
Pre-drill holes
Brass screws can sheer when under high torque. This can be prevented by pre-drilling your blockingwith the appropriate size drill bit. Using a steel screw of the same drive size and thread count can also help prepare the screw hole without making the hole too large for secure mounting.
Add a center support (when needed)
For rods longer than 35–48 inches, a center bracket prevents sagging and protects both the rod and your walls.

For products made from live brass it is important that you wear gloves while installing the unit as the oils on your hands will leave markings on the brass. More information on product care can be found on our Product Care page.

The Drapery Rod uses 1", 5/8", and 3/8" diameter tube. You can purchase a sample here.

Meet the Drapery Rod Fittings

Here are are all the fittings used to construct The Drapery Rod System. If you would like to modify an existing system or make one on your own, we welcome you to browse our collection.
